Compatibility

The extension is compatible with Shopware version above 6.5.x.x

Installing the Shopware extension

You can install the extension in 2 ways

through Shopware official store and
via zip file for the extension.

Follow the steps below for the preferred installation.

Extensions --> Store --> search for the extension in the Shopware 6 store via search bar --> Add extension --> My extensions --> Install app --> Activate the extension --> Configure the extension.
Extensions --> My extensions --> Upload extension via a zip file from your computer --> Install app --> Activate the extension --> Configure the extension.

3.Uninstall - The extension can be uninstalled via Extensions --> My extensions --> Ecomwise Customer Portal --> ... --> Uninstall

Configuration Shopware

Publish web services - The integration is using the default REST API's of Microsoft 365 Business Central (API (v2.0) for Dynamics 365 Business Central - Business Central ) and Odata webservices which need to be published in Business Central. Below is the list of webservices with the service names that need to be set.

Before making API and webservice calls 2 configurations need to be made on Dynamics 365 Business Central

Set up the Azure AD application in Business Central
More information on this and the exact steps to follow can be found on the Microsoft learning center https://learn.microsoft.com/en-us/dynamics365/business-central/dev-itpro/administration/automation-apis-using-s2s-authentication.

The configuration of the Shopware extension can be found on the following location: Settings --> Extensions --> BC Integration -->

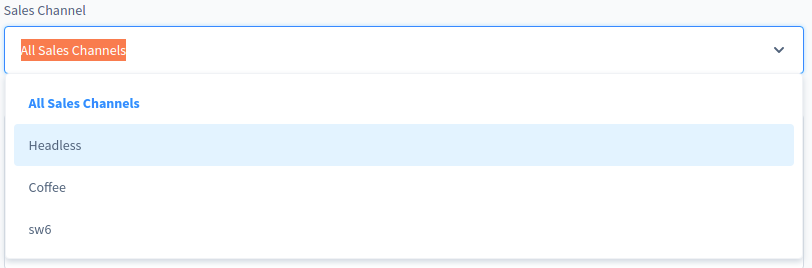

Sales Channel - to be selected for the sales channel for which this configuration will be enabled/applied.

Object type	Object ID	Object name	Service name	All tenants	Published
Page	31	Items	items	0	1
Page	30	Item card	Article	0	1
Page	42	Sales Order	Sales_Order	0	1
Page	313	General Product Posting Groups	MC_GeneralProductPostingGroups	0	1
Page	300	Customer Shipping Adress	MC_CustomerShippingAdress	0	1
Page	21	Customer Card	MC_CustomerCard	0	1
Page	5050	Contact Card	MC_ContactCard	0	1

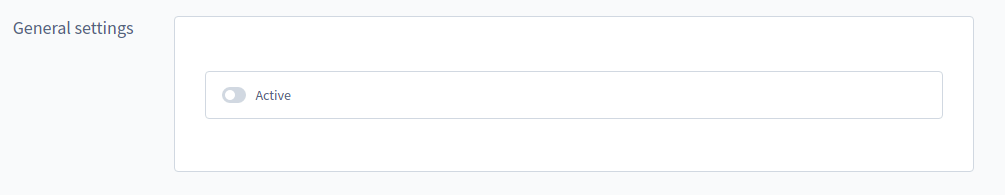

General settings - activate or disable the extension

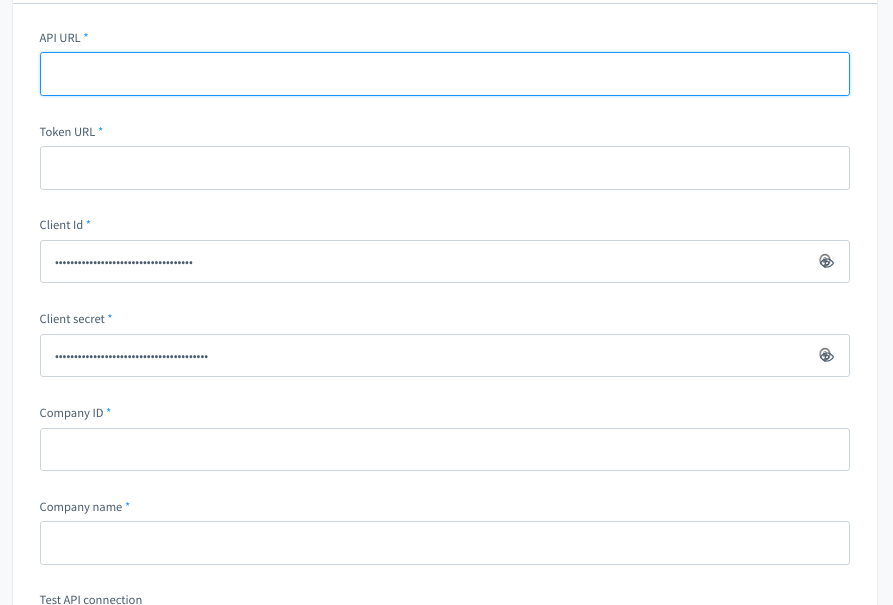

API settings

For the connection the below API details need to be added.

API URL : API URL from Business Central is to be entered here (ex. https://api.businesscentral.dynamics.com/v2.0/{{tenant_id}}/{{env_name}}/api/v2.0/)
Token URL:URL for the Oauth 2 token of Business Central (ex. https://login.microsoftonline.com/{{tenant_id}}/oauth2/v2.0/token?)
Client ID - Client ID for the authentication.This is obtained from the setup of the Azure AD application.
Client secret - Client secret for the authentication. This is obtained from the setup of the Azure AD application.
Company ID - identification for the Business Central company is to be entered here.
Company name - name of the company under which Business Central is created is to be entered here
Last in the API settings box is the "Test" button via which the validity of the entered credentials can be tested.

If the credentials are correct it will be green-lighted, if the credentials are wrong then you will have a warning message.

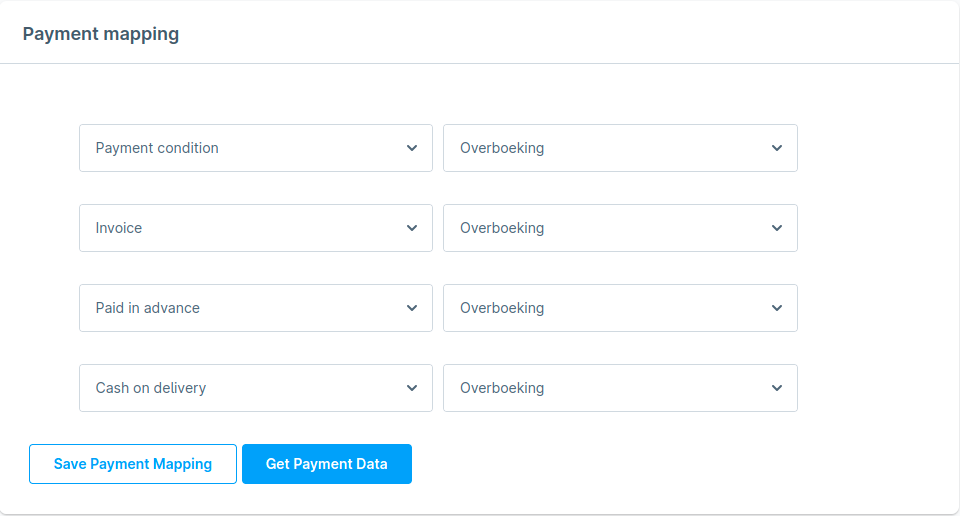

Payment mapping

Payment mapping can be configured in the following area, available settings as follows:

Payment condition
Invoice
Paid in advance
Cash on delivery

The available payment methods settings can be mapped with one of the payment statuses.

Mappings can be downloaded via button "Get payment data".

The configuration can be saved via button “Save Payment Mapping”.

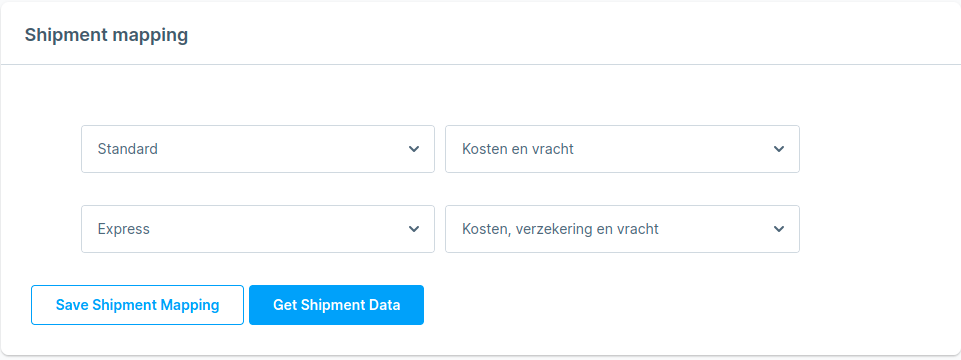

Shipment mapping

Shipment mapping can be configured in the following area, available settings as follows:

Standard
Express

The available shipment methods settings can be mapped with on of the shipment statuses. The configuration can be saved via button “Save Shipment Mapping”. Mappings can be downloaded via button“Get Shipment Data” .

Product import settings

Product import settings can be configured in the following area. Several settings are available such as:

Type of update:

All products - all products available will be imported via activating this setting.
Selection of products - SKUs can be entered in the input field “SKU of selected products (comma separated) “, for the entered SKUs imported will be executed.
Only changed products - imported will be all the products that have been modified since last import has been run.

All of the imported products can be imported in one of the existing tax classes via drop-down options in “Default tax class for new products” .

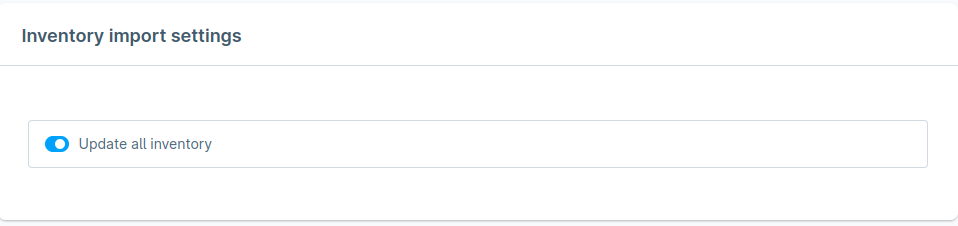

Inventory import settings

Inventory import can be configured via a toggle button. If active than full inventory import will be performed.

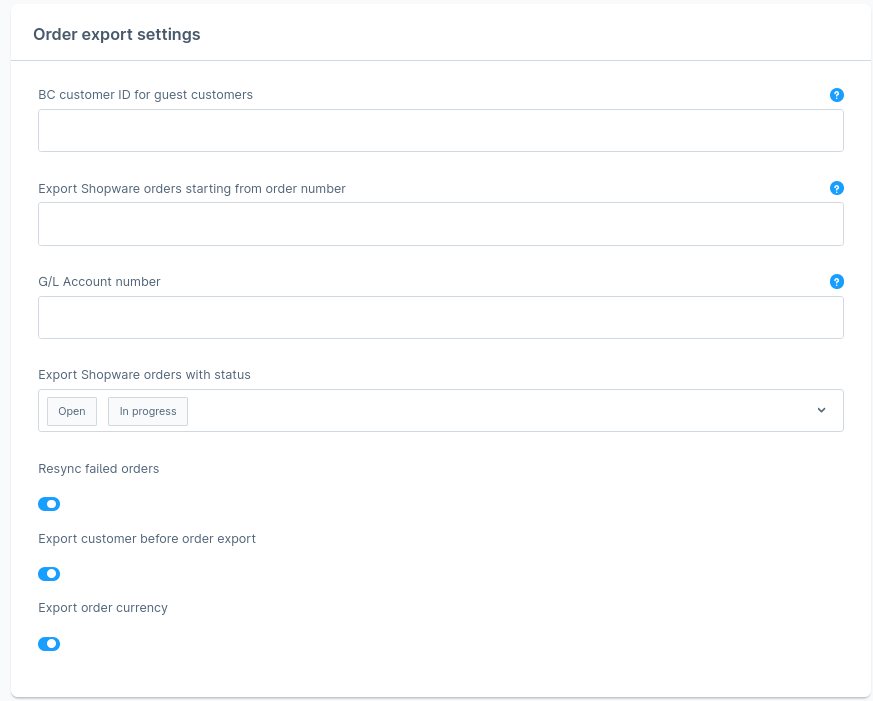

Order export settings

Order export settings can be configured in the following area. The following input fields need to be fill in:

BC customer ID for guest customers: dedicated ID for a guest customer
Export Shopware orders starting from order number: to be added the number of the order for starting the export
G/L Account number: order line
Export Shopware orders with status - you can select multiple statuses from the offered list (Open, In progress etc.)
Resync failed orders toggle yes/no for this setting: if field is enabled than failed sync orders will be re-sync
Export customer before order export toggle yes/no for this setting: if field is enabled first customers will be exported than orders will follow with export
Export order currency toggle yes/no for this setting: if field is enabled order currency is being sent in BC

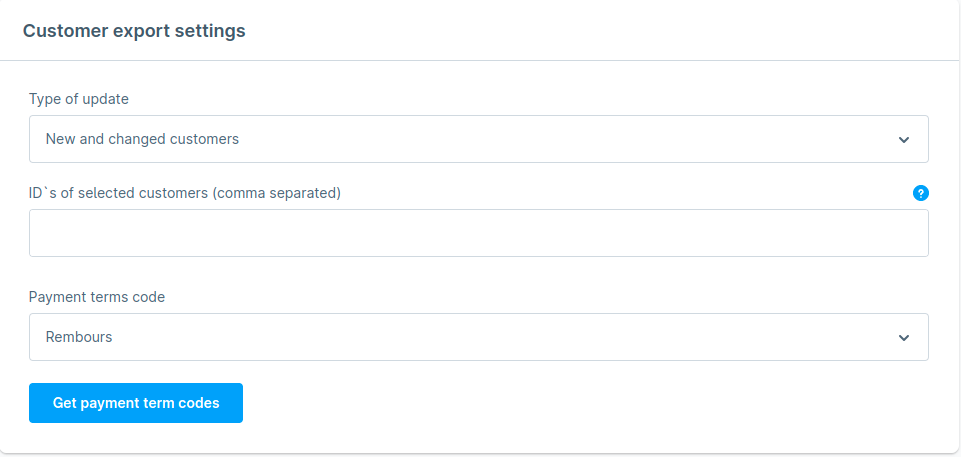

Customer export settings

Customer export settings can be configured in the following area.

Type of update:

New and changed customers: with activating this setting customers that are newly created or/and modified will be exported to Business Central
Selection of customers - IDs can be entered in the input field “ID`s of selected customers (comma separated)“, selected SKUs will be exported.
Only new customers: with activating this setting customers that are newly created will be exported to Business Central

All of the exported customers can be exported with one of the existing payment terms code via drop-down options in “Payment terms code” . Payment term codes can be downloaded via button "Get payment term codes"

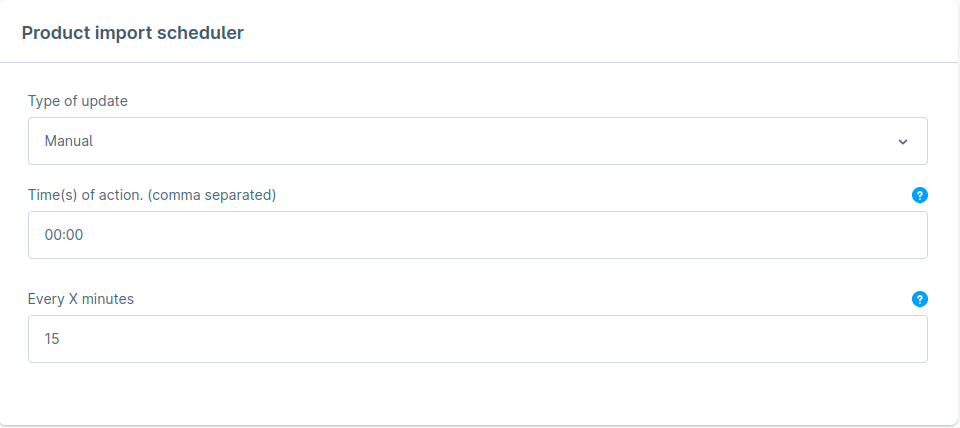

Product import scheduler

Product import scheduler can be configured in the following area. Several settings are available such as:

Type of update:

Manual - the action of product import is triggered manually via “New import products action” button when ever is needed to be triggered
Time of day - the action is triggered according to the time schedule entered in the “Time(s) of action” field, the entered time slots in this field can be multiple and they need to be comma separated
Interval - the action will be triggered every X minutes. The minutes for triggering the action are entered in the “Every X minutes” field as a number

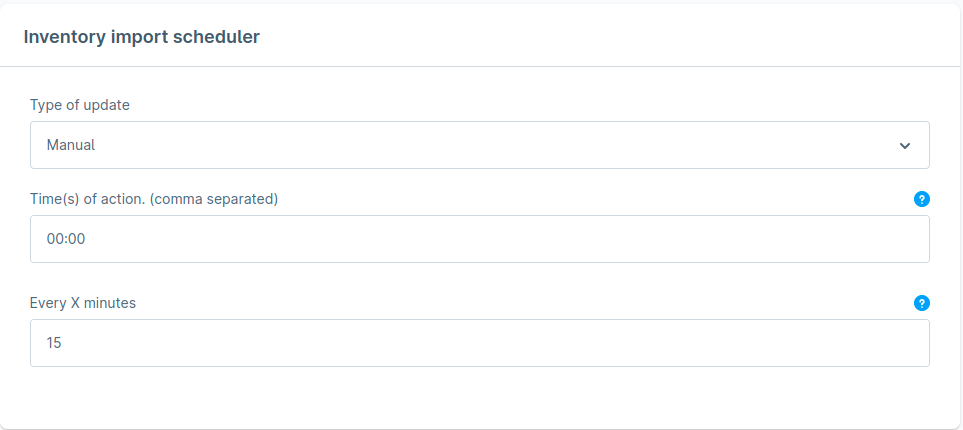

Inventory import scheduler

Inventory import scheduler can be configured in the following area. Several settings are available such as:

Type of update:

Manual - the action of inventory import is triggered manually via “New import inventory action” button when ever is needed to be triggered
Time of day - the action is triggered according to the time schedule entered in the “Time(s) of action” field, the entered time slots in this field can be multiple and they need to be comma separated
Interval - the action will be triggered every X minutes. The minutes for triggering the action are entered in the “Every X minutes” field as a number

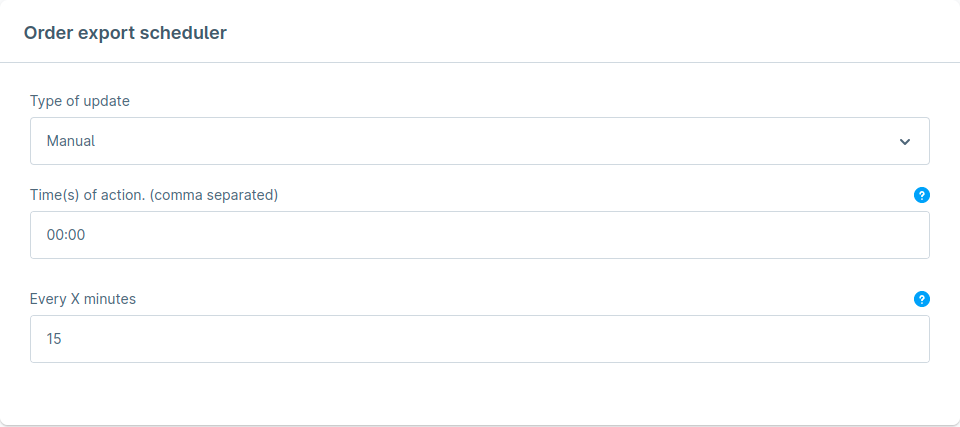

Order export scheduler

Order export scheduler can be configured in the following area. Several settings are available such as:

Type of update:

Manual - the action of order export is triggered manually via “New export order action” button when ever is needed to be triggered
Time of day - the action is triggered according to the time schedule entered in the “Time(s) of action” field, the entered time slots in this field can be multiple and they need to be comma separated
Interval - the action will be triggered every X minutes. The minutes for triggering the action are entered in the “Every X minutes” field as a number

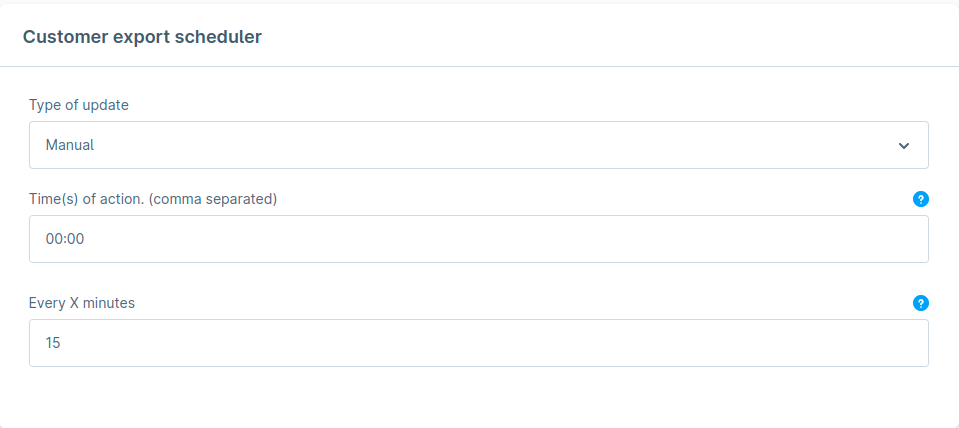

Customer export scheduler

Customer export scheduler can be configured in the following area. Several settings are available such as:

Type of update:

Manual - the action of customer export is triggered manually via “New customer export action” button when ever is needed to be triggered
Time of day - the action is triggered according to the time schedule entered in the “Time(s) of action” field, the entered time slots in this field can be multiple and they need to be comma separated
Interval - the action will be triggered every X minutes. The minutes for triggering the action are entered in the “Every X minutes” field as a number
